Monitoring Lab Computers with Nmap

By: James Reynolds - Revised: 2014-01-23 richard

Download Slides – PDF-File, 191.3 KB

Introduction

What do you get when you mix fast computers, large hard disks, lots of RAM, fast internet connections, a UNIX OS, public access to the CPU, and no monitoring? A really nice public computer lab. However, add one really smart cracker, and soon you have a really nice public lab of unauthorized internet servers.

While Mac OS X is secure, it isn't impenetrable, and it is gold mine. Someday, across University campuses everywhere, really smart crackers are going to realize that cracking into convenience store safes aren't as profitable as cracking into bank vaults. When they finally realize this, it would be nice if lab admins already have security systems ready to stop them.

NMap is a tool that scans a computer's network ports. Make sure that your computers don't have network ports open that shouldn't be open by using a script and cron to automate nmap scans.

James will discuss and demonstrate automating nmap in our labs.


Nmap

Nmap ("Network Mapper") is a free open source command line Unix utility that scans ports. The latest version is 3.48 as of Nov. 2003. It is written by "Fyodor". Some of the things Nmap can determine:

What hosts are available on the network
What services and the version they are offering
What operating system and version they are running
What type of packet filters/firewalls are in use

Nmap homepage: www.insecure.org/nmap (or just www.nmap.org).

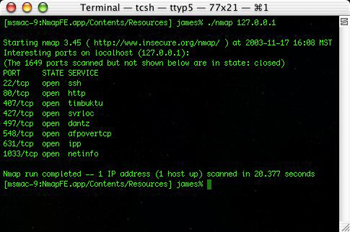

Nmap Screenshot

If you scan a box with Nmap, and you see an open port but don't know what it is, check these websites: If you think there is a process running on a box that shouldn't be, you need to do some forensics. See this page for some discussion about forensics.

NmapFE

NmapFE is a Cocoa frontend for Nmap. Latest version is 0.80 and it includes nmap version 3.45. It is written by Matthew Rothenberg. The easiest way to get Nmap is to download NmapFE. The Nmap files are located in the NMapFE Launcher bundle at:

NmapFE Launcher.app/Contents/Resources/NmapFE/Contents/Resources/nmap

NmapFE homepage: faktory.org/m/software/nmap.

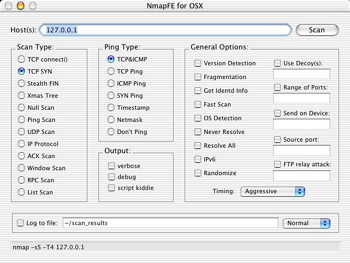

NmapFE Screenshot

Automating Nmap

Create a text file (file_with_ip_list.txt) with the ip's that you want scanned. It should look like this:

10.0.1.1
10.0.1.2
10.0.1.3
10.0.1.4
10.0.1.5
10.0.1.6
10.0.1.7
10.0.1.8
10.0.1.9
etc

Make sure it has Unix line feeds. Then run this command:

sudo /path/to/nmap -sS -sU -p 1-65535 -v -oG MyLogFile.txt -iL file_with_ip_list.txt

The above command will do a quick TCP scan of all ports (1-65535), and a slower UDP scan of all ports (1-65535). It will print verbose output, so you get alot of info. It will save the results in a grepable format in the file "MyLogFile.txt", and it will use the file file_with_ip_list.txt for the IP's scanned.

If you download NmapFE, then the path will be something like this:

NmapFE Launcher.app/Contents/Resources/NmapFE/Contents/Resources/nmap

This is kinda long. You can copy the nmap executable where ever you want, it doesn't need any of the NmapFE stuff. Take the other nmap files with it though, because nmap uses them.

There are many scanning types. I picked the -sS TCP SYN scan because it is fast. I decided to scan UDP because there are problems that can pop up there. Unfortunately, in Mac OS X 10.2 there is a range of UDP ports that like to be open and they are different on every box. I am not sure what they even are.

I picked all 65535 ports so that I know exactly what a computer is up to. I decided verbose was good to get more information.

Other than the log file and input file, I left out all other options because we don't really need to hide our scans, these are our computers after all. The only other option that needs mentioning is timing. By default it is "Normal". You can't really make it go any faster though. If you try, you will start seeing these messages in the system log of the scanned Mac:

"May 30 18:38:22 ms_osx-6 mach_kernel: Limiting closed port RST response from 318 to 100 packets per second"

If you don't want any messages in the system.log, you should slow nmap down to "Polite" or even "Sneaky", since "Normal" will generate system log messages.

Parsing the output of Nmap

The first thing you have to do to get the output of Nmap is choose the output format. Nmap can output in many formats. My favorite is the "s|<ipT kiDd|3" format (the -oS flag). Other more useful formats include grepable (-oG), XML (-oX), and human readable (-oN). What you decide is up to you. Or you can use one of the Perl scripts listed below, which parse the output and prints some sort of report.

nmap-audit

Nmap-audit is a Perl script that automates nmap port scans. The latest version is 1.66. It is written by Keith Resar

nmap-audit homepage: heavyk.org/nmap-audit.

nmap-auto

Nmap-auto is another Perl script that automates nmap port scans, but it is a little simpler than nmap-audit.

The config file contains machine profiles and the ip list. The machine profiles looks like this:

@macosx_lab {
   53      udp  domain
   123     udp  ntp
   514     udp  syslog
   47928   udp  unknown
   49152-50180   udp  unknown
   65072-65076   udp  unknown
}
@macosx_workstation {
   22      tcp  ssh
   53      udp  domain
   123     udp  ntp
   407     udp  tcp  timbuktu
   407     udp  udp  timbuktu
   497     udp  tcp  dantz
   497     udp  udp  dantz
   514     udp  syslog
   1023    tcp  ssh
   1419    tcp  timbuktu-srv3
   5353    tcp  ssh
   12345   tcp  ssh
}
@macosx_server {
   22      tcp  ssh
   53      udp  domain
   68      udp  dhcpclient
   80      tcp  http
   123     udp  ntp
   311     tcp  asip-webadmin
   407     udp  tcp  timbuktu
   407     udp  udp  timbuktu
   497     udp  tcp  dantz
   497     udp  udp  dantz
   514     udp  syslog
   548     tcp  afpovertcp
   625     tcp  unknown
   660     tcp  mac-srvr-admin
   687     tcp  unknown
   1023    tcp  ssh
   1085    tcp  unknown
   1085    udp  unknown
   1220    tcp  quicktime
   1419    tcp  timbuktu-srv3
   5353    tcp  ssh
   12345   tcp  ssh
}

(The above profiles are not finalized, so don't use them).

An IP list looks like this:

10.0.1.1    @macosx_server
10.0.1.2    @macosx_workstation
10.0.1.3-255  @macosx_lab
# etc

Nmap-auto will generate 3 categories of messages: "Alert", "ALARM", and "ERROR". An open port that is listed in the profile will generate an "Alert", basically an FYI. An open port that is not listed in the profile will generate an "ALARM". If no ports are open, an "ERROR" is generated.

These messages can be saved to a log file (/var/log/nmap-auto.log) or can be sent to an administrator remotely. The current supported network reporting method is to update a FileMaker Pro database using curl. You will need to edit the included script, report_to_master.sh to customize how you want your network reports (you could even change it to email if you want).

Nmap-auto is packaged as a startup item. It will scan the computers listed on the IP list over and over. It never quits. To remove nmap-auto, remove the startup item and either restart the computer or don't remove the startup item until you type this at the command line:

sudo SystemStarter stop nmap-auto

If you have just installed it, and you don't want to restart, you can start nmap-auto by typing in this in the Terminal:

sudo SystemStarter start nmap-auto

Download nmap-auto.pl – ZIP-File, 13.4 KB
