BSDP - Boot Service Discovery Protocol

Revised: 2007-01-17 richard

Introduction

NetBoot uses an Apple-developed protocol based on Dynamic Host Configuration Protocol (DHCP) called Boot Server Discovery Protocol (BSDP). This protocol provides a way of discovering NetBoot servers on a network. NetBoot clients obtain their IP configuration from a DHCP server and their NetBoot information from BSDP.

BSDP - Where are the NetBoot Servers?

Client sends out request for information about NetBoot servers.

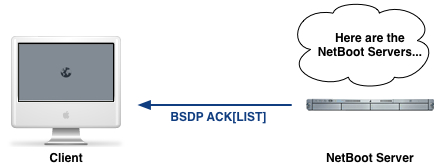

BSDP - Here are the NetBoot Servers!!!

One of the NetBoot Servers replies with info on available NetBoot Servers.

BSDP - Can I NetBoot from Server?

After selection process, client sends out request to boot from NetBoot Server.

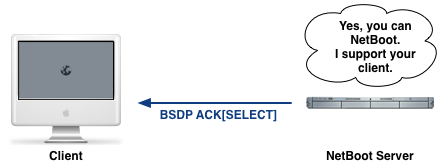

BSDP - You can NetBoot, I support your Client.

After selection process, the NetBoot Server responds if it can NetBoot Client

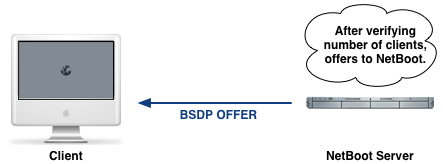

BSDP - Verify Number of Clients and Offer to NetBoot
